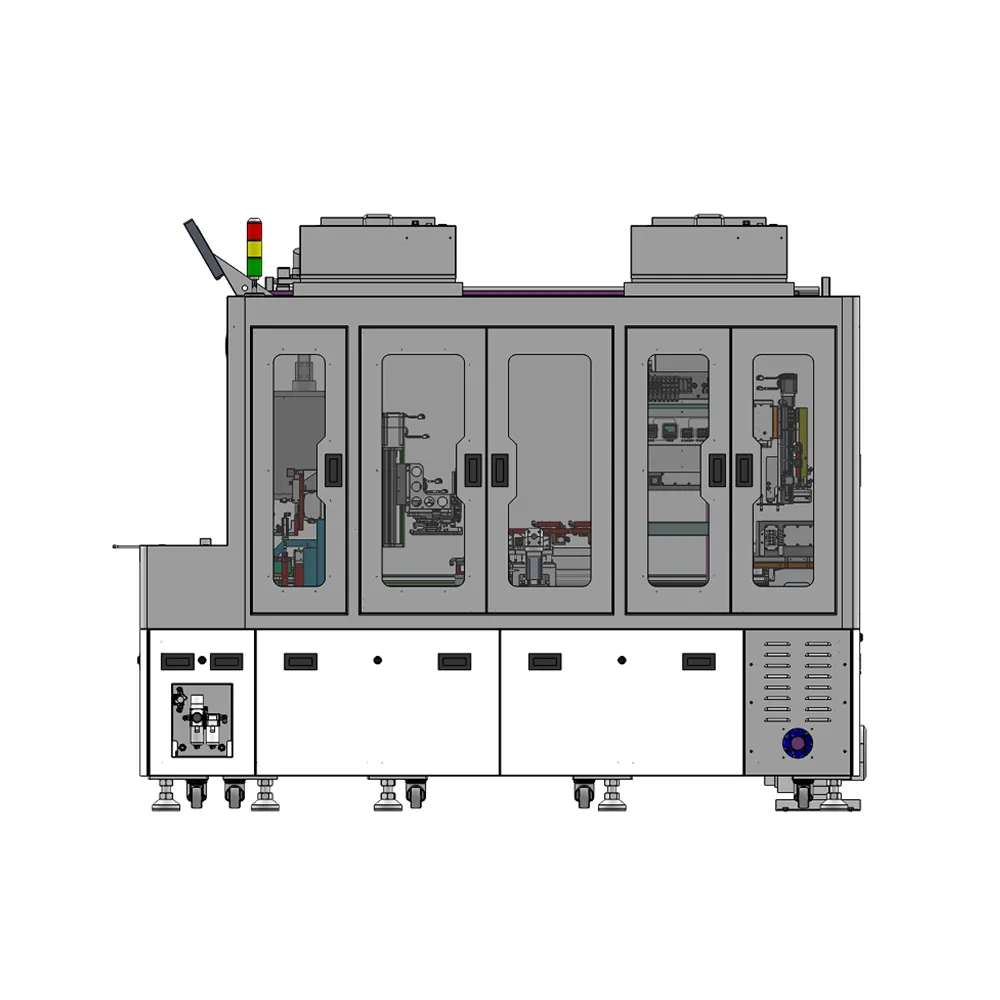

Equipment Features
1. Dual-purpose machine covering all processes, simultaneously performing vacuum chamber bonding and roller bonding. Both processes can be completed on a single machine, reducing product transfer.
2. Dual-station alternating loading and unloading, allowing vacuum/roller bonding operations to run concurrently.
3. No need to purchase separate vacuum machines and roller bonding machines, saving equipment, space, labor, and maintenance.
4. Supports soft-to-soft, soft-to-hard, hard-to-hard, curved/flat surfaces, offering exceptional versatility.
5. Suitable for automated production lines requiring high yield, high efficiency, and multi-product compatibility.
Technical Specifications
| Project | Specifications |
| Equipment Model | MY-VALM05 |
| Equipment Functions | The equipment is mainly used for roll bonding and lamination processes. |
| Applicable Sizes | L: 80mm~200mm x W: 40mm~130mm |
| Lamination Accuracy | ±0.1mm, CPK≥1.33 |
| Alignment Method | Mechanical Alignment |
| Equipment Dimensions | L1800 x W2650 x H2200 |
| Power Supply Voltage | AC380V 50/60HZ |
| Air Supply Requirements | 0.6MPa (6Kgf/cm2) |
| Equipment Capacity | ≤52S/PCS |
| Lamination Method | Roller bonding and vacuum lamination |
| Other Main Functions | Automatic barcode scanning, manual loading/unloading, or robotic loading/unloading |

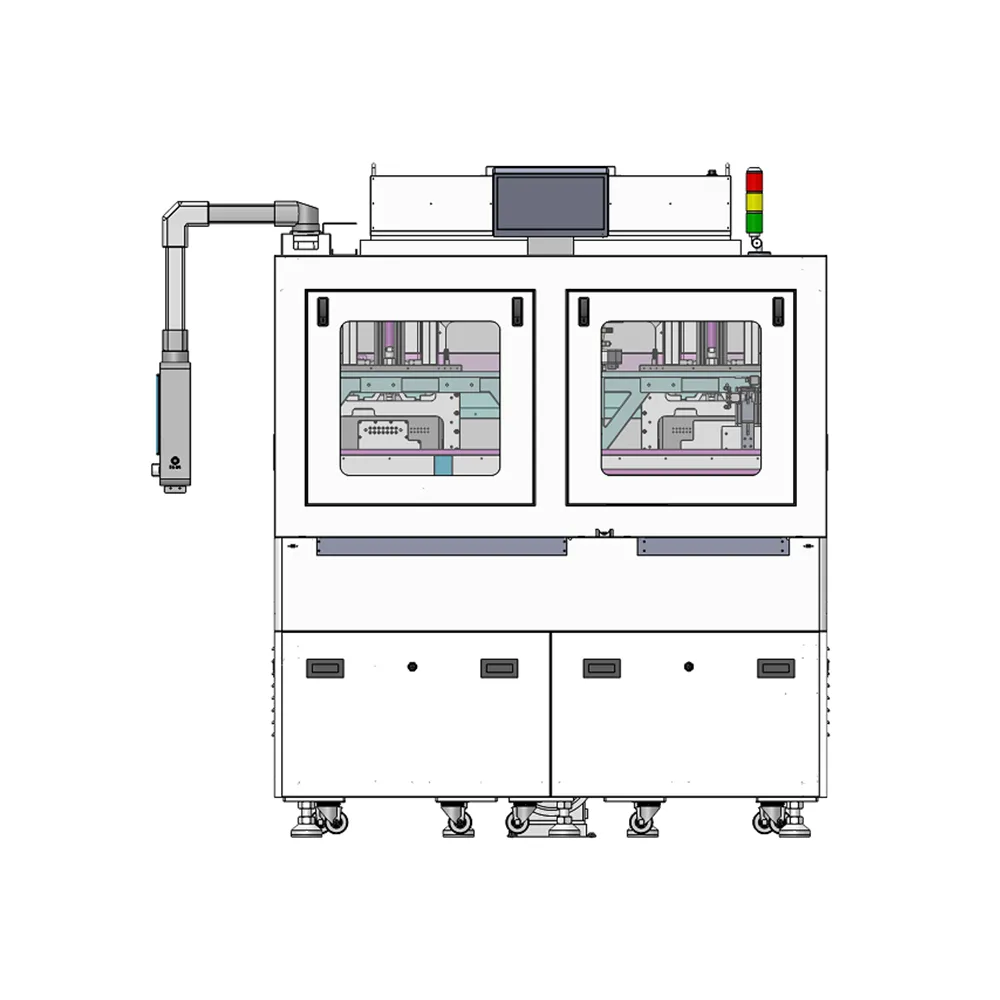

Dual-Station Vacuum Lamination Equipment
Equipment Features
1. Dual-station parallel operation: While one station is vacuum pressing, the other station can simultaneously load, unload, and position materials, eliminating equipment waiting time.
2. Bubble-free vacuum environment: High vacuum (up to -100kPa) + rapid vacuuming (approximately 5 seconds) results in a bubble-free, color-marked, and indented finish after bonding.
3. Quick changeover: PLC + touchscreen can store multiple sets of process parameters, which can be recalled with a single click when switching product models, reducing changeover time from hours to minutes.
4. Safety protection: Dual-button start, emergency stop, and safety door interlock prevent misoperation and workplace injuries.

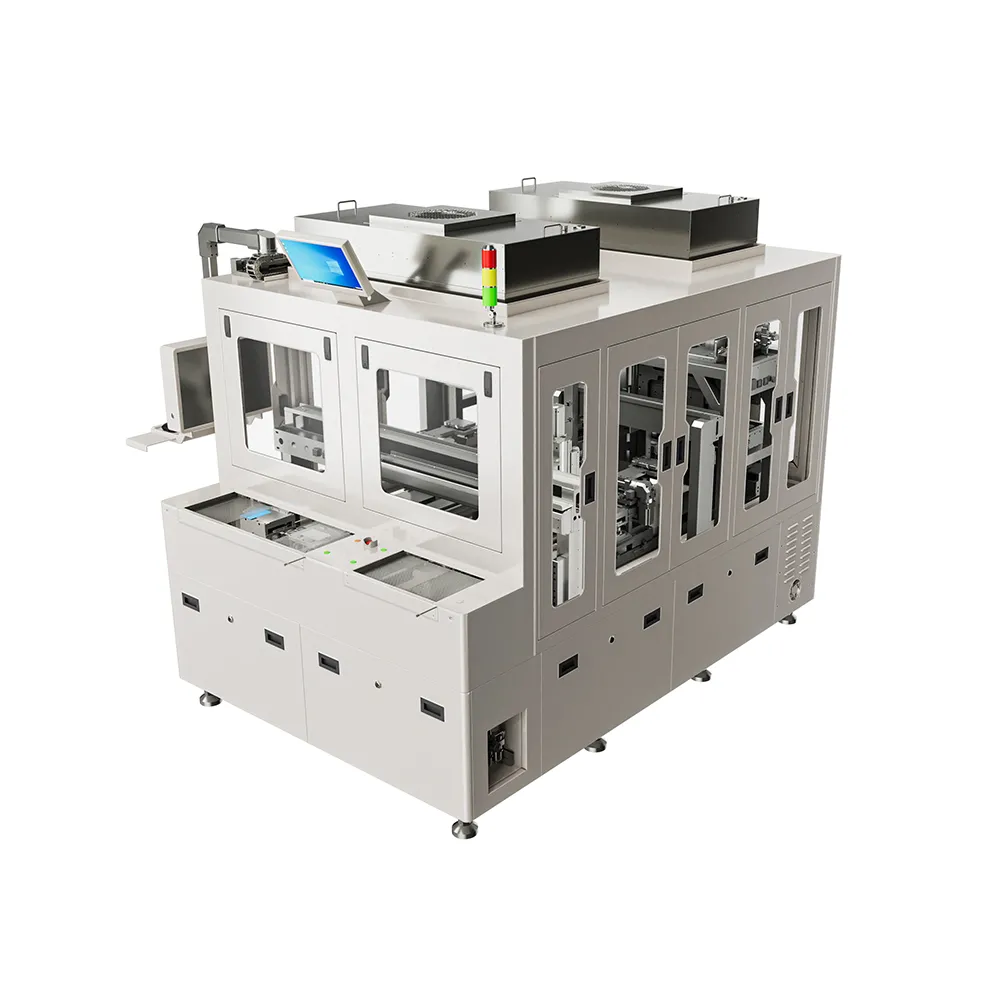

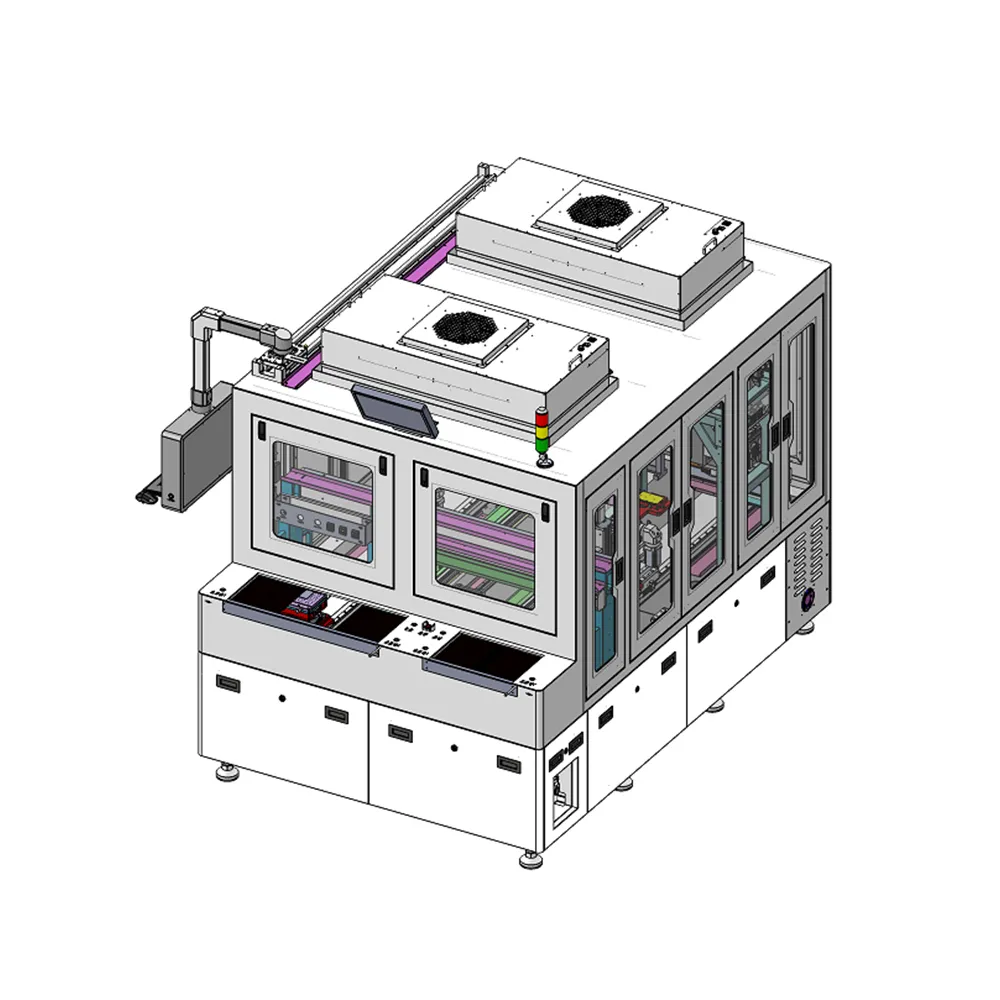

Multi-Station Vacuum Lamination Equipment
Equipment Features
1. Higher capacity and faster cycle time: While one station is vacuum pressing, other stations simultaneously load, align, and unload materials.
2. Almost no idle time, increasing efficiency by 200%–300% compared to single-station machines.
3. High degree of automation, saving labor; easily integrates with robotic arms, production lines, and automatic loading/unloading systems.
4. High space utilization; for the same capacity, it occupies a much smaller area than multiple single/dual-station machines.
5. High output per employee, concentrated energy consumption, and fewer maintenance points.
For 3C, new energy, automotive electronics, medical devices, aerospace enterprises, we provide exclusive customized solutions and
equipment based on their unique demands and specific problems.
