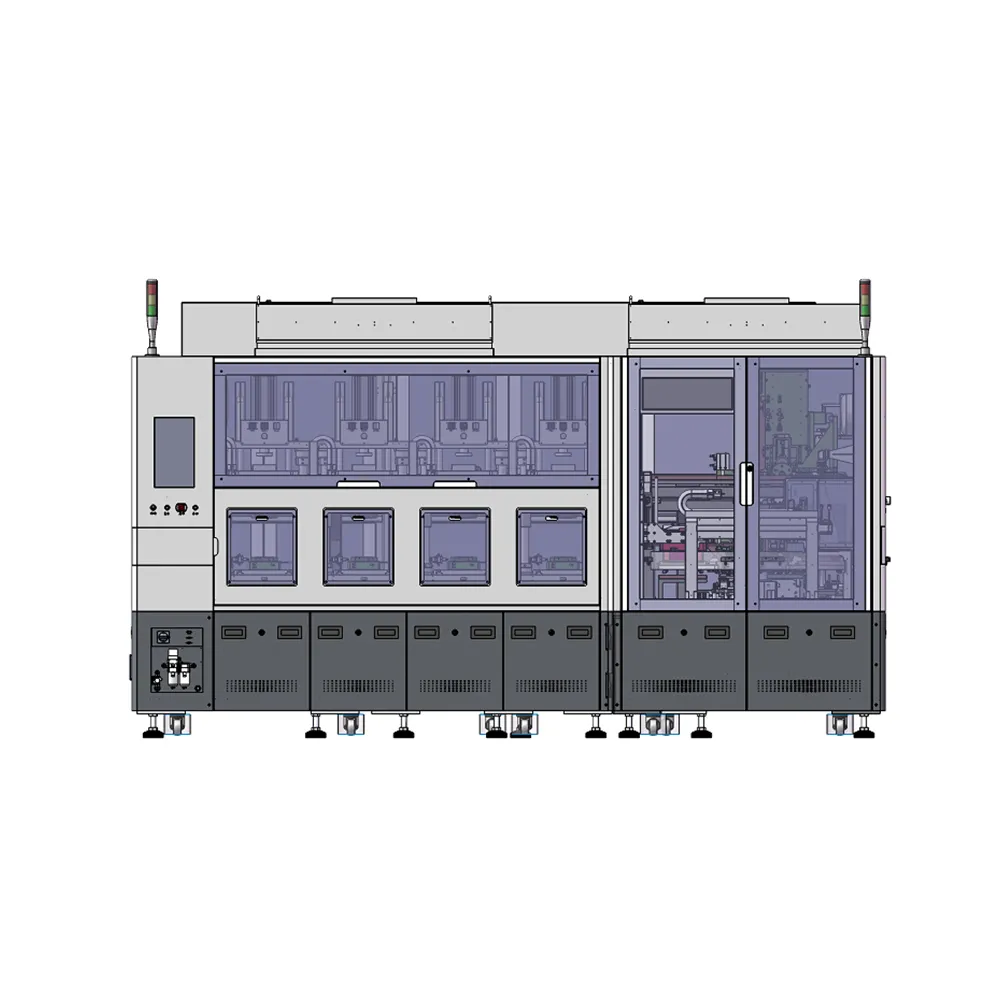

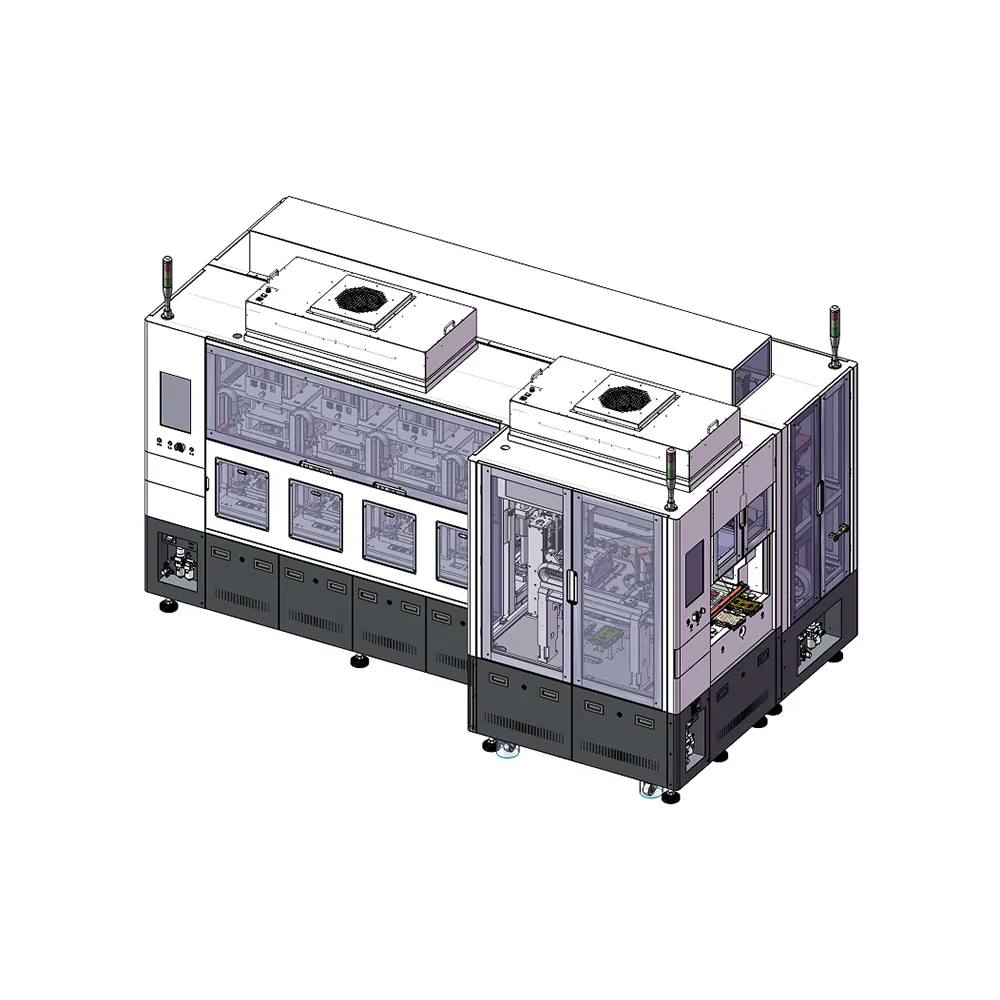

Equipment Features
1. Higher capacity and faster cycle time: While one station is vacuum pressing, other stations simultaneously load, align, and unload materials.
2. Almost no idle time, increasing efficiency by 200%–300% compared to single-station machines.
3. High degree of automation, saving labor; easily integrates with robotic arms, production lines, and automatic loading/unloading systems.
4. High space utilization; for the same capacity, it occupies a much smaller area than multiple single/dual-station machines.
5. High output per employee, concentrated energy consumption, and fewer maintenance points.
Technical Specifications
| Project | Specifications |
| Equipment Model | MY-VALM03 |
| Equipment Functions | The equipment is mainly used for hard-to-hard bonding processes |
| Applicable Sizes | L: 80mm~200mm x W: 40mm~130mm |
| Bonding Accuracy | ±0.1mm, CPK≥1.33 |
| Alignment Method | Mechanical Alignment + CCD Vision Guidance Positioning |
| Equipment Dimensions | L3750 x W2050 x H2200 |
| Power Supply Voltage | AC380V 50/60HZ |
| Air Supply Requirements | 0.6MPa (6Kgf/cm2) |
| Equipment Capacity | ≤11S/PCS |
| Lamination Method | Laminate application after UV adhesive activation |
| Other Main Functions | Automatic barcode scanning, residual adhesive detection, UV curing |

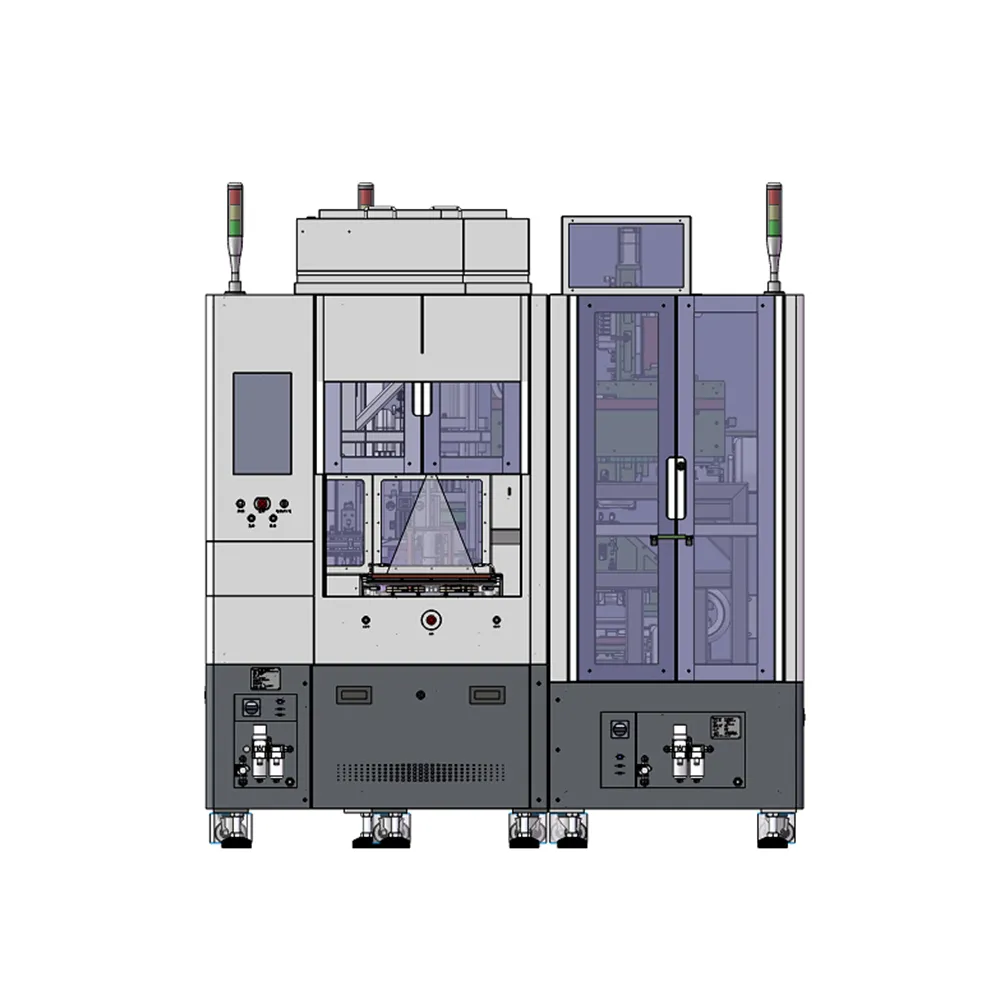

Dual-Station Vacuum Lamination Equipment
Equipment Features
1. Dual-station parallel operation: While one station is vacuum pressing, the other station can simultaneously load, unload, and position materials, eliminating equipment waiting time.
2. Bubble-free vacuum environment: High vacuum (up to -100kPa) + rapid vacuuming (approximately 5 seconds) results in a bubble-free, color-marked, and indented finish after bonding.
3. Quick changeover: PLC + touchscreen can store multiple sets of process parameters, which can be recalled with a single click when switching product models, reducing changeover time from hours to minutes.
4. Safety protection: Dual-button start, emergency stop, and safety door interlock prevent misoperation and workplace injuries.
Touch Panel high vacuum Lamination Equipment
Equipment Features
1. Dual-purpose machine covering all processes, simultaneously performing vacuum chamber bonding and roller bonding. Both processes can be completed on a single machine, reducing product transfer.
2. Dual-station alternating loading and unloading, allowing vacuum/roller bonding operations to run concurrently.
3. No need to purchase separate vacuum machines and roller bonding machines, saving equipment, space, labor, and maintenance.
4. Supports soft-to-soft, soft-to-hard, hard-to-hard, curved/flat surfaces, offering exceptional versatility.
5. Suitable for automated production lines requiring high yield, high efficiency, and multi-product compatibility.
For 3C, new energy, automotive electronics, medical devices, aerospace enterprises, we provide exclusive customized solutions and
equipment based on their unique demands and specific problems.
