Equipment Features
1. Rotary design allows for simultaneous loading, assembly, fastening, unloading, and inspection, operating continuously without idle time, significantly increasing capacity compared to linear and single-station systems.
2. Can be enhanced with CCD vision, barcode scanning, and defective product rejection functions, creating a multi-functional integrated workstation.
3. Servo electric screwdrivers precisely control torque, depth, and number of turns, ensuring uniform fastening without slippage, loose fastening, or misalignment, resulting in high yield and consistency.
4. One-click storage and recall of program parameters adapts to different product models, suitable for multi-variety, high-volume production.
5. Centralized layout, small footprint, easily integrates with production lines and robotic arms to form a fully automated production line.
Technical Specifications
| Project | Specifications |
| Equipment Model | MY-ALSM03 |
| Equipment Function | The equipment is mainly used for the assembly and screw fastening of digital 3C products. |
| Applicable Sizes | L: 80mm~200mm x W: 40mm~130mm |
| Screwing Torque | 0.2-3.5 kgf.cm |
| Alignment Method | Mechanical Positioning + CCD Vision Guided Locking |
| Equipment Dimensions | L2750 x W1700 x H1750 |
| Power Supply Voltage | AC220V 50/60HZ |
| Air Supply Requirements | 0.6MPa (6Kgf/cm2) |
| Equipment Capacity | ≤9S/PCS |
| Lock-on Method | Intelligent electric screwdriver locking, monitoring locking torque |
| Other Main Functions | Automatic loading and unloading, automatic screw feeding, locking height detection |

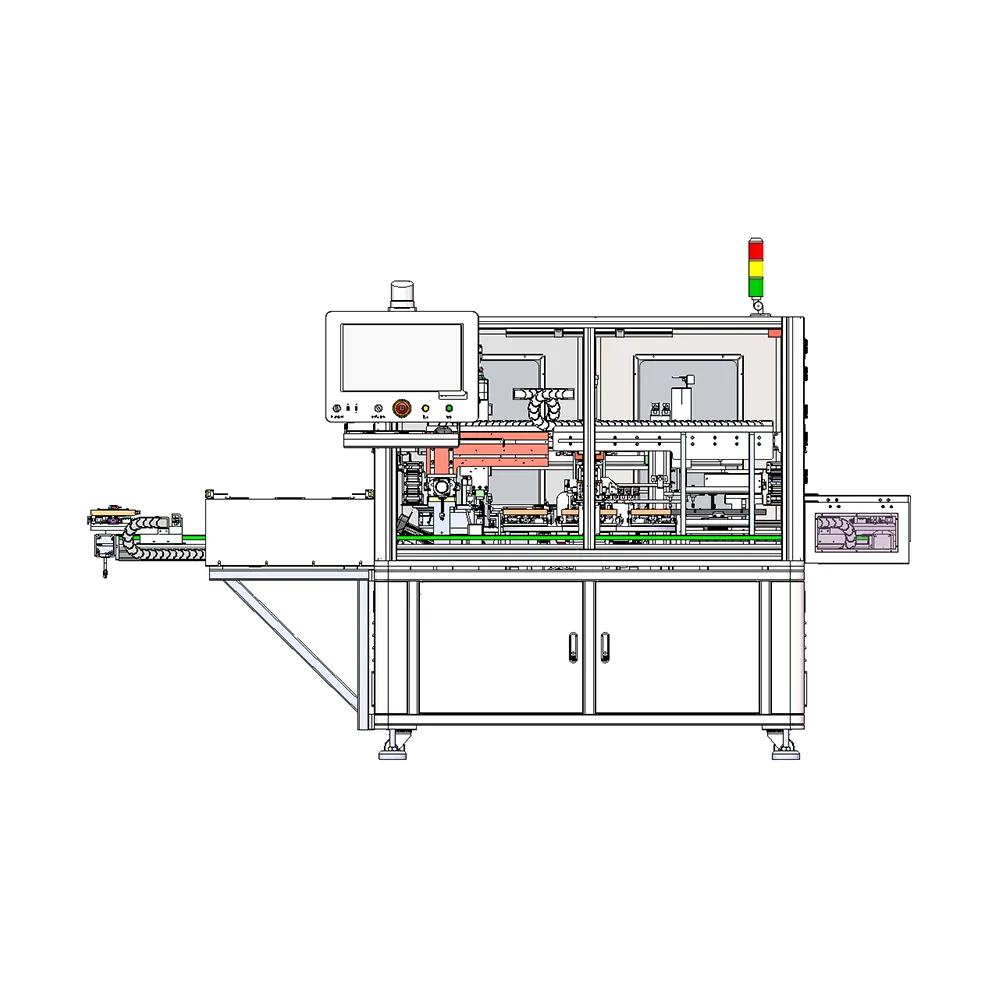

Multi-Station Screw Fastening Equipment
Equipment Features
1. Simultaneous multi-station loading, fastening, and unloading eliminates idle time, significantly increasing efficiency compared to single-station or dual-station systems, resulting in faster cycle times and higher output.
2. Automated loading, fastening, and unloading are achieved, allowing a single person to oversee multiple units, drastically reducing labor costs and minimizing human error.
3. Servo electric screwdrivers precisely control torque, depth, and number of turns, ensuring uniform fastening without slippage, loose fastening, or misalignment, resulting in high yield and strong consistency.
4. One-click storage and recall of program parameters adapts to different product models, suitable for multi-variety, high-volume production.
5. Centralized layout with a small footprint allows for easy integration with production lines and robotic arms to form a fully automated production line.
For 3C, new energy, automotive electronics, medical devices, aerospace enterprises, we provide exclusive customized solutions and
equipment based on their unique demands and specific problems.
