Equipment Features
1. The mesh cage features a built-in flexible mesh plate + vacuum adsorption + rolling, with air venting during bonding to completely eliminate air bubbles. This results in no air bubbles or indentations at either end, significantly improving yield compared to ordinary rolling processes.
2. The flexible mesh plate and rollers maintain flexible contact, avoiding direct scratching of the product surface. Pressure is evenly distributed, preventing roller marks, water ripples, and glass breakage.
3. Equipped with a CCD vision + XYR alignment platform, alignment accuracy reaches ±0.02~0.1mm, meeting the requirements of narrow bezels/full-screen displays.
4. Full-area vacuum adsorption + servo rolling ensures consistent pressure across the entire surface, resulting in excellent flatness after bonding.
Technical Specifications
| Project | Specifications |
| Equipment Model | MY-SMLM03 |
| Equipment Function | The equipment is mainly used for soft-to-hard wire mesh cage bonding processes |
| Applicable Sizes | L: 80mm~200mm x W: 40mm~130mm |
| Bonding Accuracy | ±0.1mm, CPK≥1.33 |
| Alignment Method | Mechanical Positioning + CCD Vision Guided Positioning |
| Equipment Dimensions | L1760 x W850 x H2100 |
| Power Supply Voltage | AC220V 50/60HZ |
| Air Supply Requirements | 0.6MPa (6Kgf/cm2) |
| Equipment Capacity | ≤32S/PCS |
| Lamination Method | Net Cage Attachment |
| Other Main Functions | Automatic film peeling, front and back detection, automatic barcode scanning |

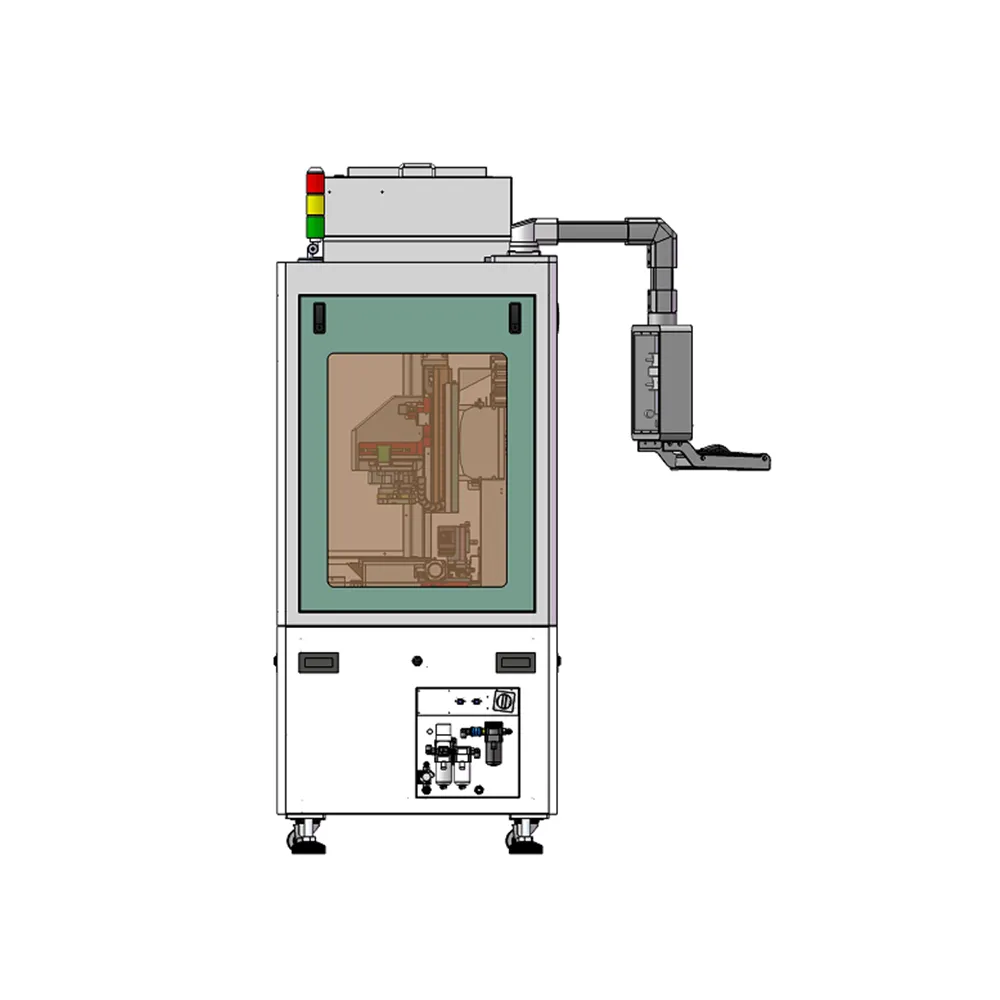

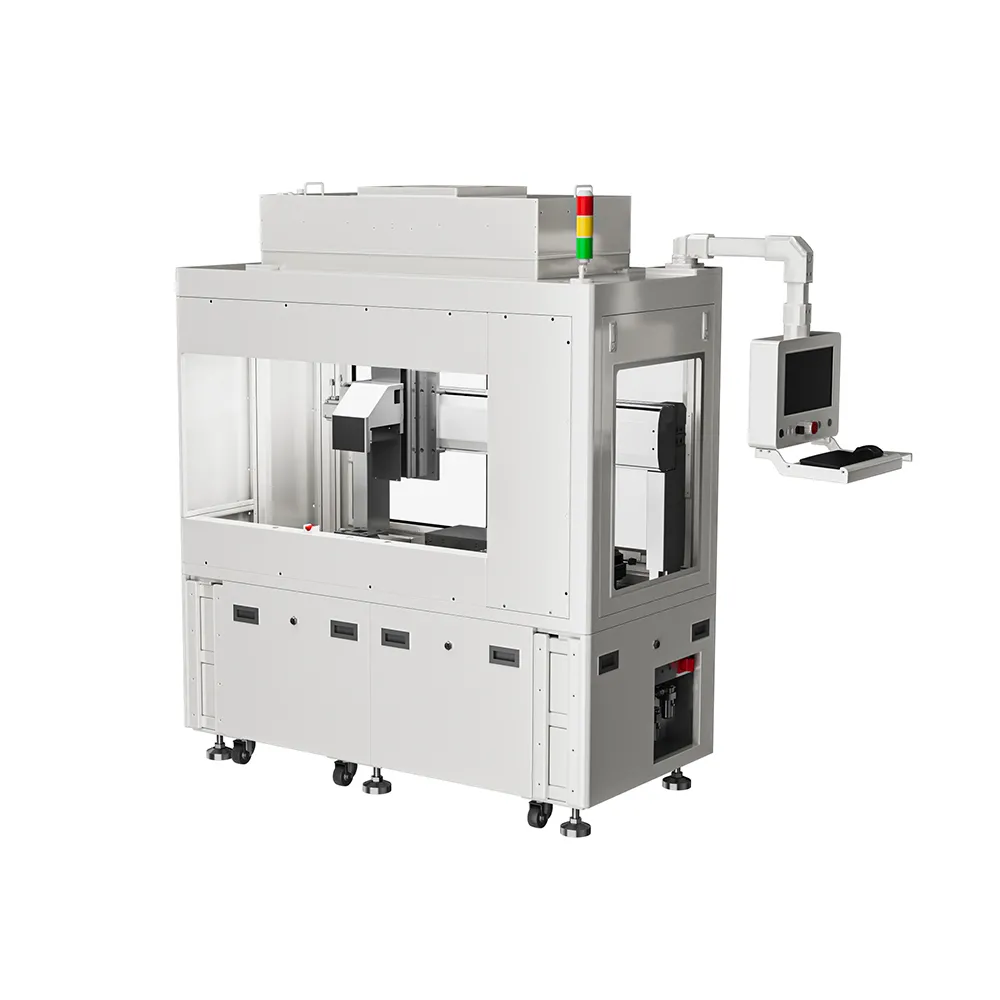

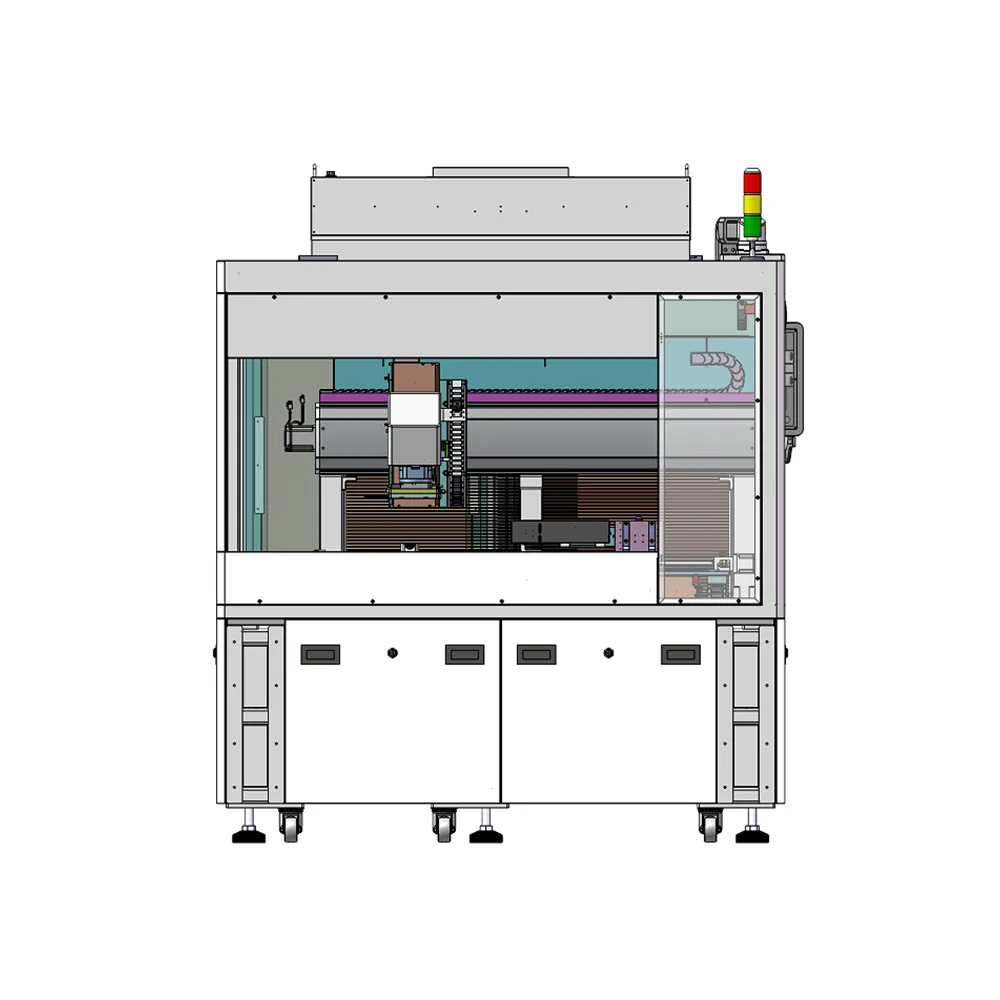

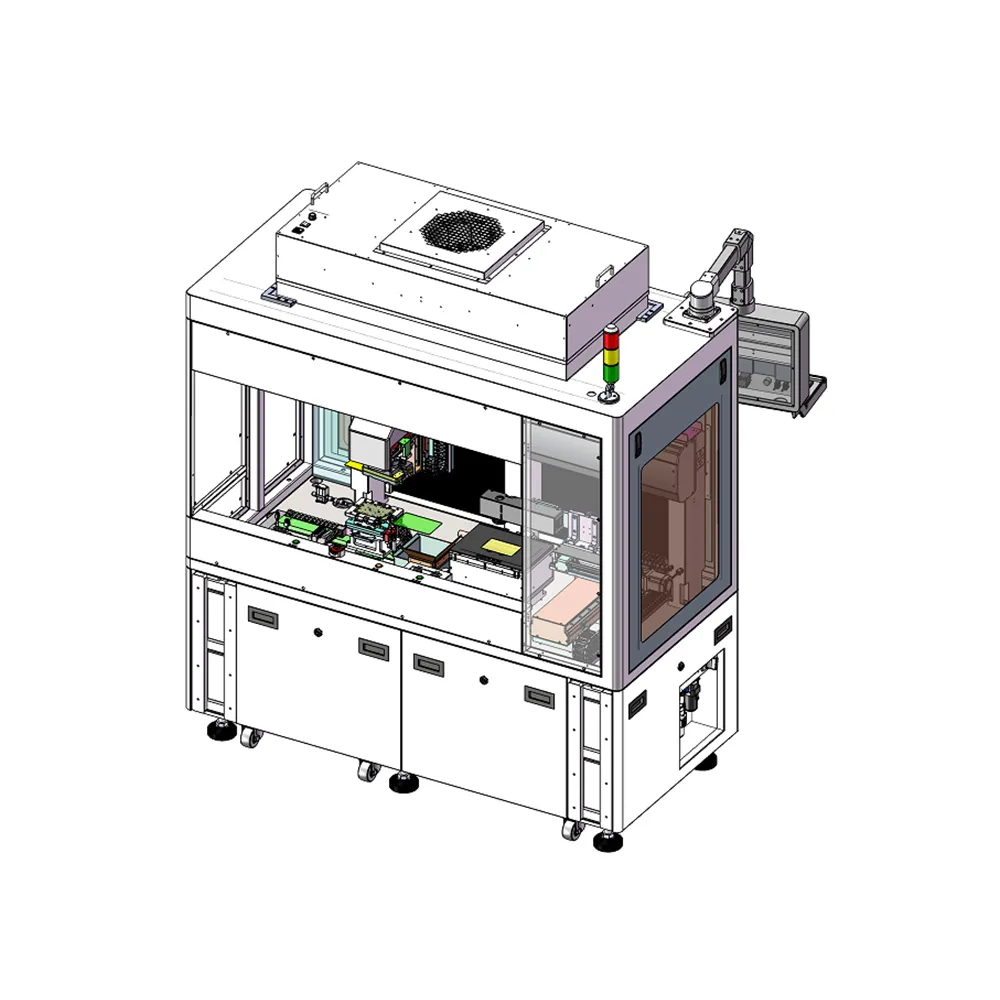

Flexible Panel Lamination Equipment
Equipment Features
1. The mesh box features a built-in flexible mesh plate + vacuum adsorption + rolling, pressing and venting simultaneously during bonding to completely eliminate air, resulting in no air bubbles or indentations at either end, significantly improving yield compared to ordinary rolling.
2. The flexible mesh plate and rollers make flexible contact, avoiding direct scratching of the product surface. Pressure is evenly distributed, preventing roller indentations, water ripples, and glass breakage.
3. Equipped with a CCD vision + XYR alignment platform, alignment accuracy reaches ±0.02~0.1mm, meeting the requirements of narrow bezels/full-screen displays.
4. Full-area vacuum adsorption + servo rolling ensures consistent pressure across the entire surface, resulting in excellent flatness after bonding.
5. The turntable design allows for simultaneous loading, unloading, and bonding, eliminating waiting time and idle strokes.
For 3C, new energy, automotive electronics, medical devices, aerospace enterprises, we provide exclusive customized solutions and
equipment based on their unique demands and specific problems.
