Equipment Features
1. Simultaneous rolling and air removal ensures a smooth, wrinkle-free, and bubble-free bond, suitable for OCA, AB glue, and protective films.
2. Capable of bonding flat surfaces, products with small curvatures, and large sizes; compatible with both soft-to-soft and soft-to-hard bonding.
3. Compact design facilitates integration with automated loading and unloading systems, production lines, and robotic arms, resulting in a high degree of automation.
4. Simple structure, low failure rate, high stability, easy maintenance, and low cost.

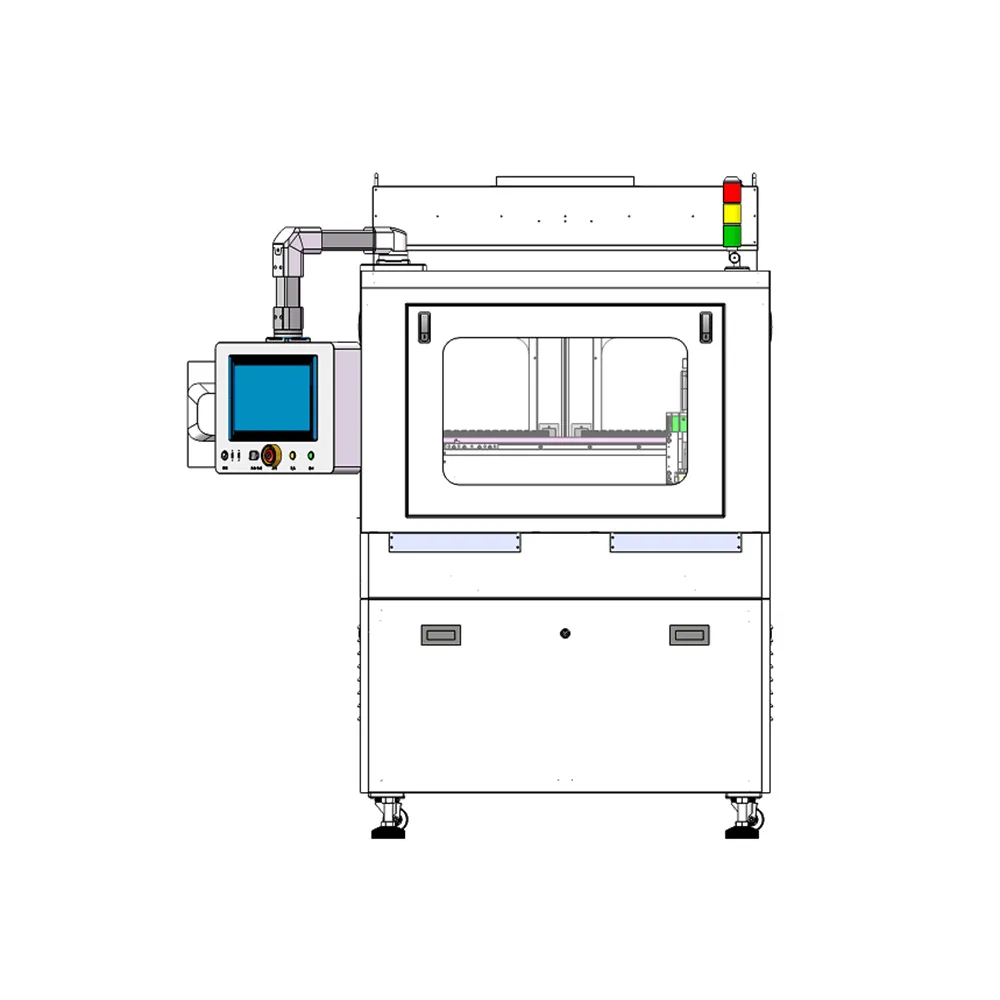

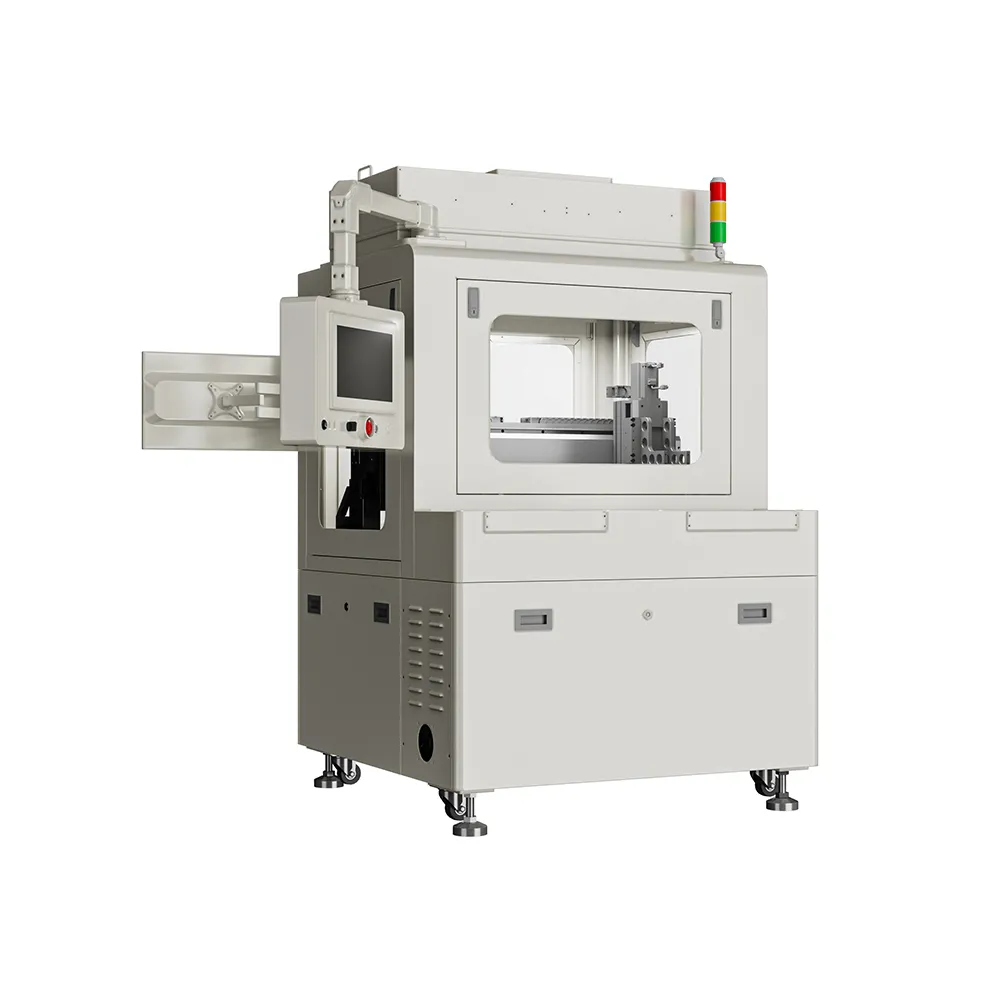

5. Dual-station parallel operation: While one station is rolling and bonding, the other station can simultaneously load, unload, and position materials, eliminating equipment waiting time.
Technical Specifications
| Project | Specifications |
| Equipment Model | MY-RPLM03 |
| Equipment Functions | The equipment is mainly used for soft-to-hard rolling processes |
| Applicable Sizes | L: 80mm~200mm x W: 40mm~130mm |
| Fitting Accuracy | ±0.1mm, CPK≥1.33 |
| Alignment Method | Mechanical Alignment |
| Equipment Dimensions | L1250 x W1300 x H2050 |
| Power Supply Voltage | AC220V 50/60HZ |
| Air Supply Requirements | 0.6MPa (6Kgf/cm2) |
| Equipment Capacity | ≤10S/PCS |
| Lamination Method | Roller Application |
| Other Main Functions | Automatic Film Removal, Automatic Barcode Scanning |
High-Precision Rolling Lamination Equipment
Equipment Features
1. Simultaneous rolling and air removal ensures a smooth, wrinkle-free, and bubble-free bond, suitable for OCA, AB glue, and protective films.
2. Capable of bonding flat surfaces, products with small curvatures, and large sizes; compatible with both soft-to-soft and soft-to-hard lamination.
3. Compact design facilitates integration with automated loading and unloading systems, production lines, and robotic arms, resulting in a high degree of automation.
4. Simple structure, low failure rate, high stability, easy maintenance, and low cost.
5. Compatible with both sheet and roll film feeds.
For 3C, new energy, automotive electronics, medical devices, aerospace enterprises, we provide exclusive customized solutions and
equipment based on their unique demands and specific problems.
